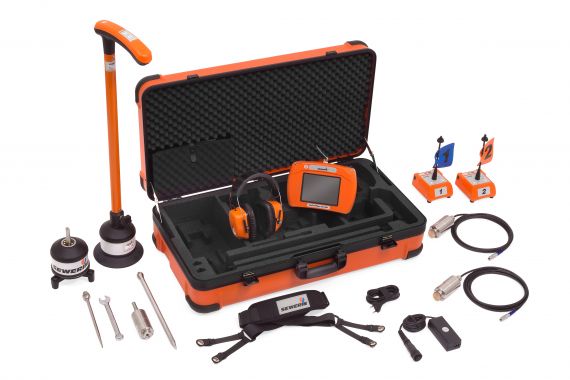

SeCorrPhon AC 06

Portable Correlator with “Fully Loaded” Ground Microphone Capabilities

Attaching microphones
Leak detection
Radio transmitters
Leak Detection Equipment
Leak Detection Equipment
Leak Detection Equipment
Leak Detection Equipment

 Precise water leak location with Digital Signal Processing

The two EM30 microphones are attached by magnet, or valve adaptors, to hydrants, valves, the pipe walls or even directly into the water column using hydrophone sensors. As long as the leak noise can be “heard” by both microphones the SeCorrPhon AC 06 can process and analyse the resulting information.

The sounds picked up by the microphones are transmitted via two powerful 500 mW radio transmitters to the lightweight central processing unit SeCorrPhon AC 06 Digital Signal Processor where the information is quickly analysed & the resulting leak position is displayed both graphically and numerically, in metres to the leak from each sensor.

SeCorrPhon AC 06 - Radio transmitters and Piezo accelerometers

The noise from the microphones is transmitted to the central control processor by two powerful radio transmitters

  • Lightweight radio transmitters which can easily be carried in one hand by the antenna carrying buttons
  • Automatic on/off when the microphone is plugged in/out - no danger of running the battery flat by mistake
  • Automatic best amplification level selected when microphone connected
  • In built low pass frequency filter - Ideal for plastic pipes; It highlights and emphasises sounds in the range 0-300 Hz which is where leak noises are more likely to be propagated on this material
  • The receiver and radio transmitters can all be charged in the closed case doing away with the nuisance of having multiple component parts plugged into various sockets around your office.
  • Charging can also be carried out in your car or van via the 12V cigar lighter lead or permanently hard wired



Direct microphone connection

In the event of accidental damage to a radio transmitter either microphone can be plugged directly into the SeCorrPhon AC 06 allowing you to carry on working without interruption.



Hydrophones
Best performance for finding leaks in plastic pipes

  • Hydrophones are microphones which are attached, via hydrants, directly into the water column (as opposed to on the external surface of the pipe) so even very quiet water leak noise can be heard far more successfully.
  • They are particularly useful on plastic pipes and trunk mains where sounds does not travel as well as on cast and steel pipes
Leak Detection Software
Software

SeCorrPhon AC 06 - Firmware and Software

With the SeCorrPhon AC06 software you can:

  • Analyse field tests on your PC or laptop. This can be very useful where a test gives a good indication of a leak but the other input data is unreliable, such as pipe material, or size. The results can be recalculated back in the office to give the correct leak location without the need to carry out another correlation. This can be carried out on the PC or on the SeCorrPhon AC 06 itself
  • E-mail: Test results can be sent by email for comment or assistance from Sewerin
  • Reports: PC software produces clear reports including: Your address, client’s address, operator, leak location, material, diameter, coherence, correlation and a pictorial representation of the leak location.
  • Record leak noise: Real leak noise sound can be recorded which allows users to listen to noises away from the field for later comment and interpretation, perhaps by more experienced staff
  • Zoom: Zoom function on display - Gives added clarity to suspect readings
Portable correlator

What is correlation?

Correlation is a way of finding and pinpointing leaks in pressurised water pipes.
A leak in a pipe under pressure creates noise that travels through the pipe walls, the surrounding ground and along the contents of the pipe. If two highly sensitive microphones are attached to two different locations on a pipe with a water leak between then the sound from the water leak will take longer to travel to the microphone furthest from the leak; this is referred to as the “time delay” or ∆t. Utilising this and other information (pipe diameter, material and length of section under test), the exact leak position can be calculated by the correlator SeCorrPhon AC 06.

Leak detection

Advantages of using correlators to find water leaks

Listening sticks or ground microphones used for  water leak detection can be affected by external noise interferences such as cars, wind etc.. The correlator SeCorrPhon AC 06 is unaffected by these interferences making water leak detection possible in even the noisiest environments. Other surrounding influences including the depth of pipe, ground conditions and rain have no effect on the accuracy of results. When using electro-acoustic devices the operator’s experience and sense of hearing is paramount. Correlation is based on mathematical calculations consequently the reliance on the operator’s subjective views are eliminated allowing anyone with minimal training to carry out leak location.

using the SeCorrPhon

SeCorrPhon AC06: Not Just a Correlator but also an Advanced Ground Microphone

For a number of reasons correlation is not a fool proof science, (much as we all wish it were so!)
After correlation has been carried out it is always advisable that the indicated leak position should be checked by listening on the ground above the suspected leak location. With other correlators this would mean having to purchase a separate ground microphone - not so with the SeCorrPhon AC 06.
There are also times when it is impractical to use a correlator and the only way of locating a leak is to use an acoustic listening instrument. With the SeCorrPhon AC 06 there is no need to purchase another instrument.
It is also a fully featured ground and valve microphone device having ALL the features of our standalone ground mic system A100.

By attaching a tripod directly onto the base of the correlator microphone or by using any of our dedicated ground microphones used with the Aquaphon, the SeCorrPhon AC 06 recognises that you want to use it as a ground mic. and the display shows the following functions:


Minimum Noise Level

Minimum Noise Level Memory Function - Assistance In Finding Water Leaks
Current “lowest” noise level: - A leak noise does not get quieter but traffic and wind noise will increase and decrease.
The SeCorrPhon AC 06 ignores all these interfering noises digitally displaying only the “quietest” it has been during the time you have been listening. The current “actual” noise level is also displayed as an analogue bar graph. This is a constantly moving display depending on ambient noise levels.

Memory: The last lowest noise level is stored and displayed. Are you closer or further away from the leak in the current listening position compared to the last?
Is the leak sound getting louder or quieter? The higher the number on the display the closer to the leak you are.

Amplification: There are three levels of amplification (as well as the volume control). The amplification level can be selected to best suit the noise level being listened to.

Dynamic Hearing Protection Function
With normal acoustic detection instruments an uncomfortable, sometimes painful and dangerous, noise is heard when the test rod slips from the contact point, or the headphones are activated too soon, or not soon enough, or some comedian bangs their foot to see if you "can hear".

The SeCorrPhon AC 06 incorporates a novel technology to makes this danger a thing of the past. When a very loud noise is picked up the sound in the headphones is immediately muffled. If the sound increases even further, the headphones are switched off completely.

Frequency Filter - Water Leak Noise Optimised Listening

We do not all hear best at the same frequencies; some people prefer listening at high frequencies others to lower.
Leaks do not all produce noise at the same frequency.
Sometimes interfering noises make listening at certain frequencies very difficult.

The SeCorrPhon AC06® has a number of ways to assist with all these problems...

...SUIT YOURSELF:
By applying your own choice of frequency filters you can listen to any frequency range that you wish which best suits the leak noise being listened to, your hearing and to filter out interfering noises, all selected by the push of a button.

...LET THE SeCorrPhon AC06 HELP:
If you are unsure of what frequency filters to use the SeCorrPhon can help you decide.
The filter-optimisation function makes it easier to detect leaks even when the sound is very muffled. By activating the frequency filter button the receiver takes a noise sample which is analysed & the optimum frequency range is set. This can greatly assist those with less experience making the sound of the leak clearer.


...AUTOMATIC BEST SETTINGS:

When a microphone is plugged in the SeCorrPhon® automatically recognises which model it is and sets the best filter range. If you have chosen an alternative setting it defaults to the last settings you chose. The SeCorrPhon even turns itself on and off when you plug the microphone in or out.

SeCorrPhon AC 06 FEATURES

  • Very quick and easy to use intuitive operation sequence (can be operated by only four buttons)
  • Input data via Jog dial and / or water resistant film pad – Users can select one or both methods according to their personal preference
  • Automatic background interference noise suppression
  • Utilises the latest Digital Signal Processor (DSP) provides fast accurate calculations ensuring quicker leak location
  • Fast Fourier Transformation (FFT) correlation – precise fast location even with the most challenging leaks
  • High resolution 320 x 240 pixel display – Clear precise visualisation of leaks, even in bright sunlight
  • “Highest Peak” (likely leak location) automatically selected- This can be moved by the operator to look at other suspicious indications
  • Many “Drill down menu” advanced features, comparable to PC driven correlators, are available for times that you need to use their advantages, and out of the way when you do not

SeCorrPhon AC 06 - Technical Information Receiver

  • Display 320 x 240 pixels with bright background LED illumination
  • PC connection for information download Socket for direct connection of a variety of microphones
  • BNC connector for antenna input with 90 deg rod aerial (rotary)
  • 1 or 2 radio channels
  • Built in NiMH rechargable batteries and 12V socket for direct power or charging from vehicle Approx. 8 hours use
  • Operating/storage temperature: -10 °C … +40 °C / -20 °C … +60 °C
  • Protection class: IP 54
  • Weight: approx. 1.3 kg
  • Dimensions (W x H x D): approx. 12.5 x 18 x 6.5 cm

SeCorrPhon AC 06 - Technical Information Radio transmitter RT 06

  • Automatic microphone recognition when attached
  • Automatically on when microphone connected
  • Selectable low-pass filter to increase performance on non-metallic pipes
  • Automatic signal control
  • 500 mW output power level with optimal selectivity
  • Operating/storage temperature: -10 °C … +40 °C / -20 °C … +60 °C
  • Protection class: IP 67
  • Weight: approx. 1.3 kg
  • Dimensions (W x H x D): approx. 12.5 x 19 x 7.3 cm
  • Operating time: approx. 10 hours
